ABB

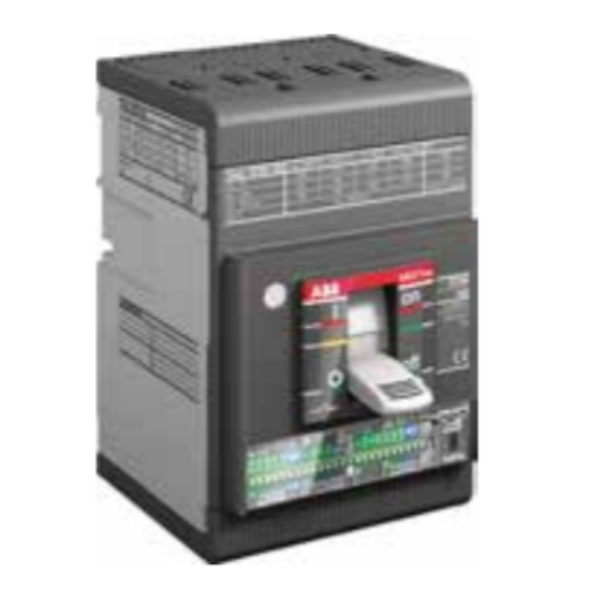

ABB 1SDA076530R1 - 160 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA076530R1 - 160 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

ABB - 160 A, 3 Pole Power Distribution Circuit Breakers efficiently buffer domestic power distribution circuits. The 160 A, 3 Pole Power Distribution Circuit Breakers instantly react when detecting a power surge or sudden drop in current supply. The 3 Pole Power Distribution Circuit Breakers have a fully automatic magnetic release trip system with little to no delay. In addition, the Power Distribution Circuit Breakers have a shallow depth measuring 82.5 mm. Therefore, the Power Distribution Circuit Breakers require very little space for mounting. These Circuit Breakers can also work with motor protection systems.

Product Specifications:

  • Brand: ABB
  • Frame: XT1 160
  • Version: C
  • Product Type: Tmax Power Distribution Circuit Breakers
  • Voltage: 415 V AC
  • Current Rating: 50 Amp
  • Number of Poles: 3 Pole
  • Protection: TMD
  • Breaking Capacity: 25 kA at 415 VAC
  • Current Type: AC/DC
  • Electrical Durability:120 cycles per hour, 8000 cycle
  • Mechanical Durability: Nr. Operations 240 cycles per hour, Nr. Operations 25000 cycle
  • Number of Poles: 3
  • Opening Time: CB with SOR 15 ms, CB with UVR 15 ms
  • Power Loss: at Rated Operating Conditions per Pole 16.15 W
  • Rated Current (In): 160 A
  • Rated Voltage (Ur): 690 V
  • Rated Impulse Withstand Voltage (Uimp): 8 kV
  • Rated Instantaneous Short-Circuit Current Setting (Ii): 960…2240 A
  • Rated Insulation Voltage (Ui): 1000 V
  • Rated Operational Voltage: 690 V AC, 500 V DC

Key Features:

  • High Quality
  • Durable
  • Easy to use and install
  • Low maintenance
Product Specifications

GENERAL

Brand:
ABB
Depth:
82.5 mm
Electrical Durability:
120 cycles per hour 8000 cycle
Frame:
XT2 160
Height:
130 mm
Model:
1SDA076530R1
Number of Poles:
3
Power Loss:
At Rated Operating Conditions per Pole 16.15 W
Rated Current:
160 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
1.1 Kg
Width:
90 mm
