ABB

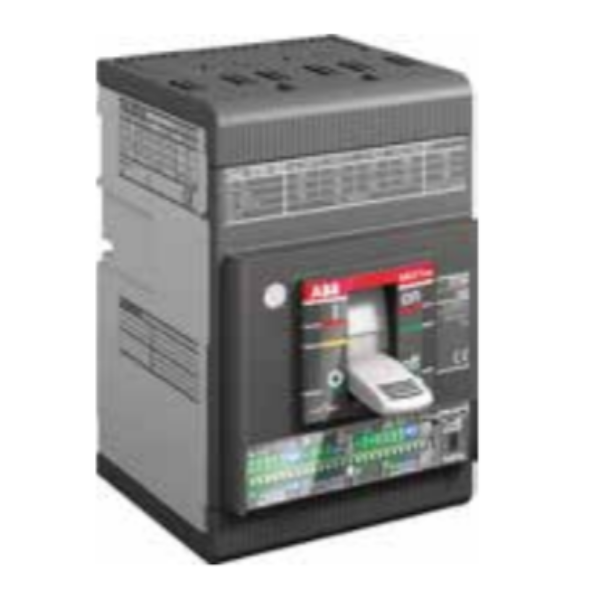

ABB 1SDA076529R1 - 160 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA076529R1 - 160 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

ABB - 160 A, 3 Pole Power Distribution Circuit Breakers are 3 pole Circuit Breakers designed with front terminals and a shock-proof moulded casing. The 3 Pole Power Distribution Circuit Breakers are compatible with domestic and industrial power distribution lines. These 160 A, 3 Pole Power Distribution Circuit Breakers have a long service life and provide 8000 cycles of electrical life. In addition, the Power Distribution Circuit Breakers come in a small, compact size that makes installation easy. The ABB Circuit Breakers are RoHS and CE compliant.

Product Specifications:

  • Brand: ABB
  • Depth: 82.5 mm
  • Electrical Durability: 120 cycles per hour 8000 cycle
  • Frame: XT2 160
  • Height: 130 mm
  • Model: 1SDA076529R1
  • Number of Poles: 3
  • Power Loss: At Rated Operating Conditions per Pole 16.15 W
  • Rated Current: 160 A
  • Rated Impulse Withstand Voltage: 8 KV
  • Rated Insulation Voltage: 1000 V
  • Rated Operational Voltage: 690 V AC and 500 V DC
  • Rated Voltage: 690 V
  • Weight: 3.1 Kg
  • Width: 90 mm

Key Features:

  • Safeguard Equipment
  • Protection from short circuits
  • Instantaneous response
  • Highly Durable performance
Product Specifications

GENERAL

Brand:
ABB
Depth:
82.5 mm
Electrical Durability:
120 cycles per hour 8000 cycle
Frame:
XT2 160
Height:
130 mm
Model:
1SDA076529R1
Number of Poles:
3
Power Loss:
At Rated Operating Conditions per Pole 16.15 W
Rated Current:
160 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
3.1 Kg
Width:
90 mm
