ABB

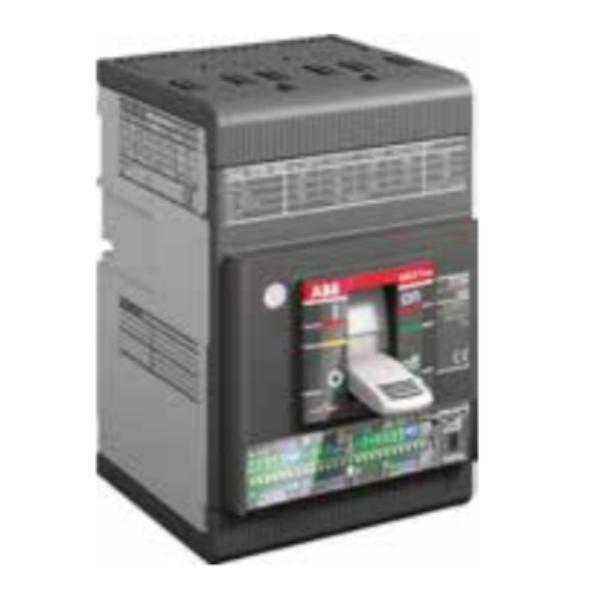

ABB 1SDA068520R1 - 250 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA068520R1 - 250 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The ABB- 250 A, 3 Pole Power Distribution Circuit Breakers has the main type SACE Tmax XT, the first molded case circuit breaker that can operate independently of external accessories. Additionally, the 3 Pole Power Distribution Circuit Breakers are CE marked. To reduce the risk of electrical hazards, these Power Distribution Circuit Breakers have double insulation, and the internal live power circuit is separated from the accessories.

Product Specifications:

  • Brand:ABB
  • Product Id:1SDA068520R1
  • Depth: 82.5 mm
  • Electrical Durability: 120 cycles per hour 8000 cycle
  • Product Type: Power Distribution Circuit Breakers
  • Height: 160 mm
  • Number of Poles: 3
  • Rated Current: 250 A
  • Current Type: AC
  • Product Main Type: SACE Tmax XT
  • Rated Impulse Withstand Voltage: 8 Kv
  • Rated Insulation Voltage: 1000 V
  • Rated Operational Voltage: 690 V AC and 500 V DC
  • Rated Voltage: 690 V
  • Weight: 2.05 Kg
  • Width: 105 mm
  • Terminal Type: Fixed Circuit Breaker
  • Short-Circuit Performance Level: H

Key Features:

  • Energy-efficient
  • Easy to use
  • These circuit breakers are corrosion-resistant.
Product Specifications

GENERAL

Brand:
ABB
Depth:
82.5 mm
Electrical Durability:
120 cycles per hour 8000 cycle
Height:
160 mm
Model:
1SDA068520R1
Number of Poles:
3
Rated Current:
250 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
2.05 Kg
Width:
105 mm
