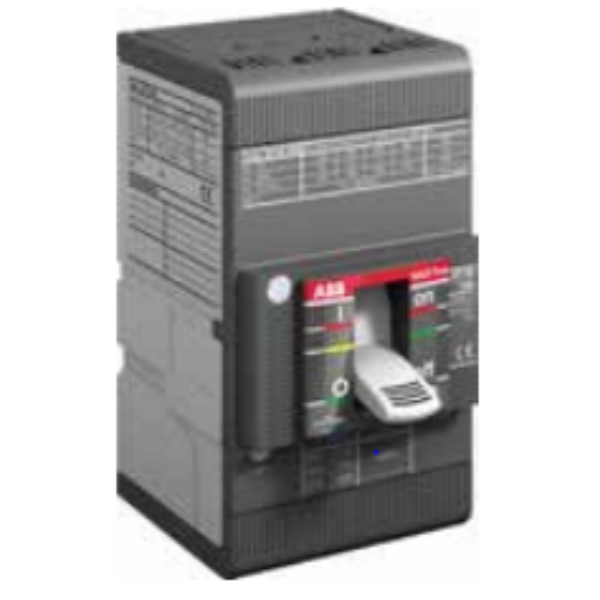

ABB 1SDA067449R1 - 50 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA067449R1 - 50 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

ABB -50 A, 3 Pole Power Distribution Circuit Breaker with three poles is compatible with domestic and industrial circuits. Power Distribution Circuit Breakers allow the connection breaking, protecting the remaining circuit conductors from current surges in sudden overload conditions. When the circuit breaker detects an overload, it trips, and you cannot restore the circuit until you eliminate the overload from the circuit. In addition, this circuit breaker protects against electric shock. 3Pole Power Distribution Circuit Breaker also has protection against electric leakage, overload, and short circuit. A single switching handle controls all three poles. Therefore, they are ideal for systems that require secure, well-organised, semi-permanent wire connections that can be swapped out rapidly in the field for inspection or repair.

PRODUCT SPECIFICATIONS:

● Brand: ABB

● Depth: 70 mm

● Electrical Durability: 120 cycles per hour 8000 cycle

● Frame: XT1 160

● Height: 130 mm

● Model: 1SDA067449R1

● Number of Poles: 3

● Power Loss: At Rated Operating Conditions per Pole 3.7 W

● Rated Current: 50A

● Rated Frequency: 50/60 Hz

● Rated Impulse Withstand Voltage: 8KV

● Rated Insulation Voltage: 800V

● Rated Operational Voltage: 690 V AC and 500 V DC

● Rated Voltage: 690 V

● Weight: 1.105 Kg

● Width: 76.2 mm

KEY FEATURES:

● Easy to manage

● Durable

● Shockproof

Product Specifications

GENERAL

Brand:
ABB
Depth:
70 mm
Electrical Durability:
120 cycles per hour 8000 cycle
Frame:
XT1 160
Height:
130 mm
Model:
1SDA067449R1
Number of Poles:
3
Power Loss:
At Rated Operating Conditions per Pole 3.7 W
Rated Current:
50 A
Rated Frequency:
50/60 Hz
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
800 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
1105 Kg
Width:
76.2 mm
