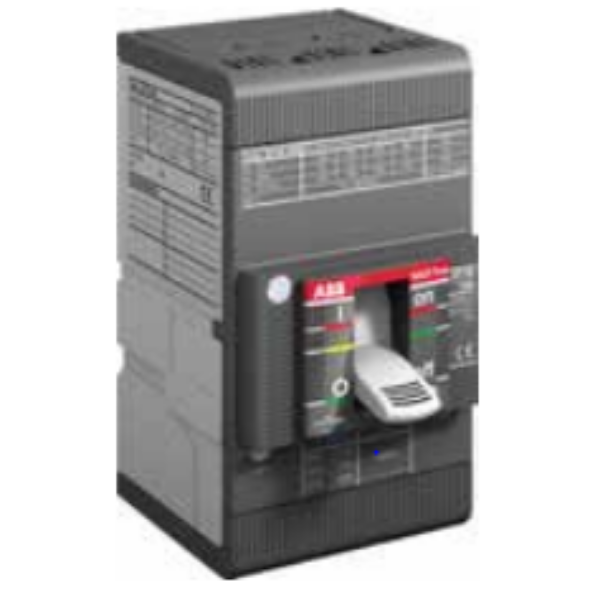

ABB 1SDA067414R1 - 63 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA067414R1 - 63 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The ABB - 63 A, 3 Pole Power Distribution Circuit Breakers are designed to protect electrical circuits from any damage caused by excess current from an overload or short circuit. The 3 Pole Power Distribution Circuit Breakers is a device that senses current and automatically measures and disconnects from the circuits whenever a fault takes place. Thus, the Circuit Breakers protects earthing faults as well as any leakage of current. Furthermore, it automatically disconnects the circuit when the rated sensitivity is exceeded. The 63 A, 3 Pole Power Distribution Circuit Breakers are manufactured according to IEC specifications. The Power Distribution Circuit Breakers come with a compact moulded casing. The double insulation on the inside of the Circuit Breakers controls the current flow and leakage.

Product Specifications:

  • Manufactured by: ABB
  • Product Code:1SDA067414R1
  • Product: 3 Pole Power Distribution Circuit Breakers
  • Frame: T6
  • Voltage: 415 V AC
  • Current rating: 63 A
  • Number of Poles: 3
  • Protection - TMD

Key Features:

  • Well insulated
  • Resistant to wear and tear
  • Sturdy design
Product Specifications

GENERAL

Brand:
ABB
Depth:
70 mm
Electrical Durability:
120 cycles per hour 8000 cycle
Frame:
XT1 160
Height:
130 mm
Model:
1SDA067414R1
Number of Poles:
3
Rated Frequency:
50/60 Hz
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
800 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
1076 Kg
Width:
101.6 mm
