ABB

ABB 1SDA067392R1 - 32 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA067392R1 - 32 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

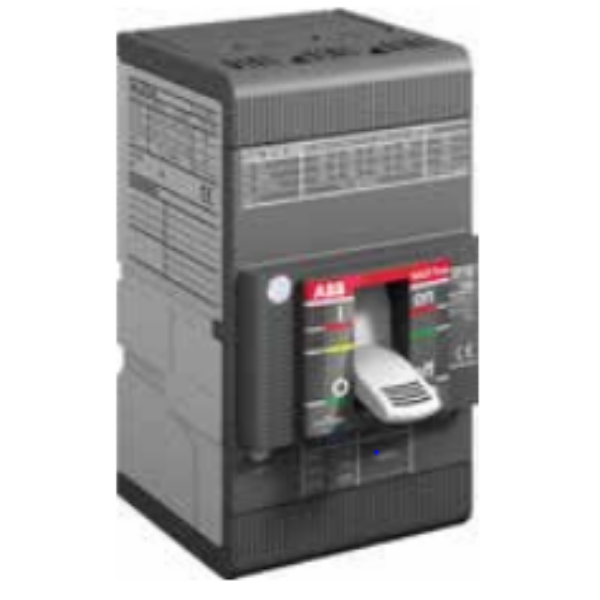

The ABB - 32A, 3 Pole Power Distribution Circuit Breakers supply 3 phase electric power to distribution boards. The 32A, 3 Pole Power Distribution Circuit Breakers have fixed three-pole with front terminals and thermomagnetic release. The 3 Pole Power Distribution Circuit Breakers works on the rated current of 32 A. The Power Distribution Circuit Breakers have 3 poles. These Circuit Breakers work on a frequency of 50-60 Hz and voltage of 690 V. The ABB -32A, 3 Pole Power Distribution Circuit Breakers work on a terminal connection type of fixed circuit breaker. The product has a moulded case. It has mechanical durability of 25000 cycles and electrical durability of 8000 cycles. It works on AC/DC currents.

Product Specifications:

  • Manufactured by: ABB
  • Model no: 1SDA067392R1
  • Current: 32 A
  • Type of product: circuit breaker
  • Width: 76.2 mm
  • Height: 130 mm
  • Length: 143 mm
  • Weight: 1.12 kg
  • Electrical durability: 8000 cycles

Key Features:

  • Durable circuit breaker
  • It has a moulded case
  • The voltage of 690 V
  • mechanical durability of 25000 cycles
Product Specifications

GENERAL

Brand:
ABB
Depth:
70 mm
Electrical Durability:
120 cycles per hour 8000 cycle
Frame:
XT1 160
Height:
130 mm
Model:
1SDA067392R1
Number of Poles:
3
Power Loss:
At Rated Operating Conditions per Pole 2.1 W
Rated Current:
40 A
Rated Frequency:
50/60 Hz
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
800 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
1064 Kg
Width:
76.2 mm
