ABB

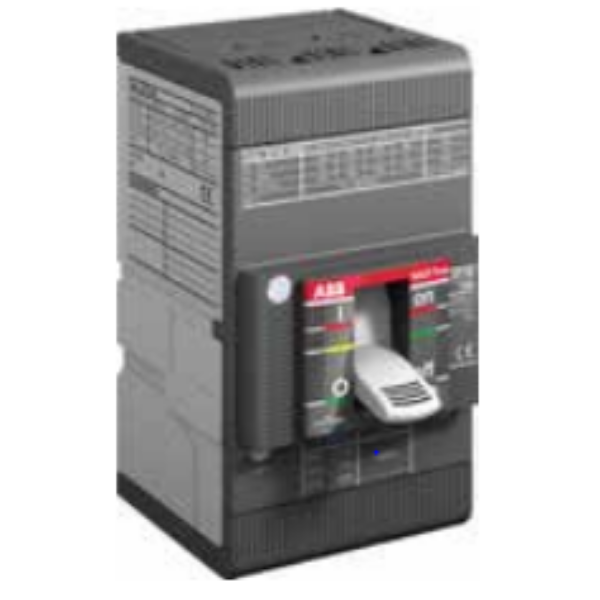

ABB 1SDA067391R1 - 25 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA067391R1 - 25 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The ABB - 25 A, 3 Pole Power Distribution Circuit Breakers is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by an electrical overload or a short circuit. The 3 Pole Power Distribution Circuit Breakers detects a faulty condition and connection error and immediately discontinue electrical flow by interrupting continuity. The 25 A, 3 Pole Power Distribution Circuit Breakers is designed to safely operate as mandated by IEC, CE and other important electrical safety standards. The Power Distribution Circuit Breakers can be easily mounted without any hassle. The Circuit Breakers are ideal for spaces with low voltage lines.

Product Specifications:

  • Manufactured by: ABB
  • Product Code: 1SDA067391R1
  • Product: 3 Pole Power Distribution Circuit Breakers
  • Frame: T6
  • Voltage: 415 V AC
  • Current rating: 25 A
  • Number of Poles: 3
  • Protection: TMD

Key Features:

  • Ergonomic design
  • Protection of electrical circuits
  • Enclosed capsulation
Product Specifications

GENERAL

Brand:
ABB
Depth:
70 mm
Electrical Durability:
120 cycles per hour 8000 cycle
Frame:
XT1 160
Height:
130 mm
Model:
1SDA067391R1
Number of Poles:
3
Power Loss:
At Rated Operating Conditions per Pole 2 W
Rated Current:
25 A
Rated Frequency:
50/60 Hz
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
800 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
1064 Kg
Width:
76.2 mm
