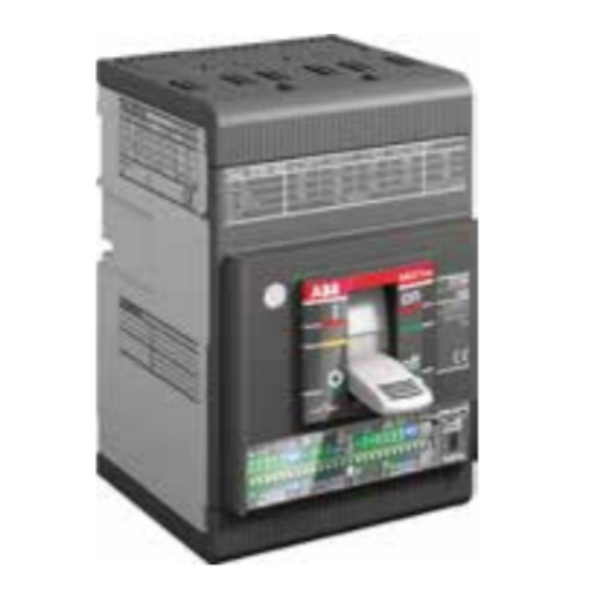

ABB 1SDA067051R1 - 52 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA067051R1 - 52 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

ABB - 52 A, 3 Pole Power Distribution Circuit Breakers are highly durable products, and their electrical durability is 120 cycles per hour 8000 cycles. Thus, the 52 A, 3 Pole Power Distribution Circuit Breakers have high durability, ensuring extended service. In addition, the 3 Pole Power Distribution Circuit Breakers are easy to reset. Moreover, the 3 Pole Power Distribution Circuit Breakers operate automatically. These small-sized Circuit Breakers are 3 poles units with appropriate insulation and earthing.

Product Specifications:

  • Brand: ABB
  • Depth: 82.5 mm
  • Electrical Durability: 120 cycles per hour 8000 cycle
  • Frame: XT2 160
  • Height: 130 mm
  • Model: 1SDA067051R1
  • Number of Poles: 3
  • Rated Current: 52 A
  • Rated Impulse Withstand Voltage: 8 KV
  • Rated Insulation Voltage: 1000 V
  • Rated Operational Voltage: 690 V AC and 500 V DC
  • Rated Voltage: 690 V
  • Weight: 1588 Kg
  • Width: 90 mm

Key Features:

  • CE marked
  • RoHS compliant
Product Specifications

GENERAL

Brand:
ABB
Depth:
82.5 mm
Electrical Durability:
120 cycles per hour 8000 cycle
Frame:
XT2 160
Height:
130 mm
Model:
1SDA067051R1
Number of Poles:
3
Rated Current:
52 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
1588 Kg
Width:
90 mm
