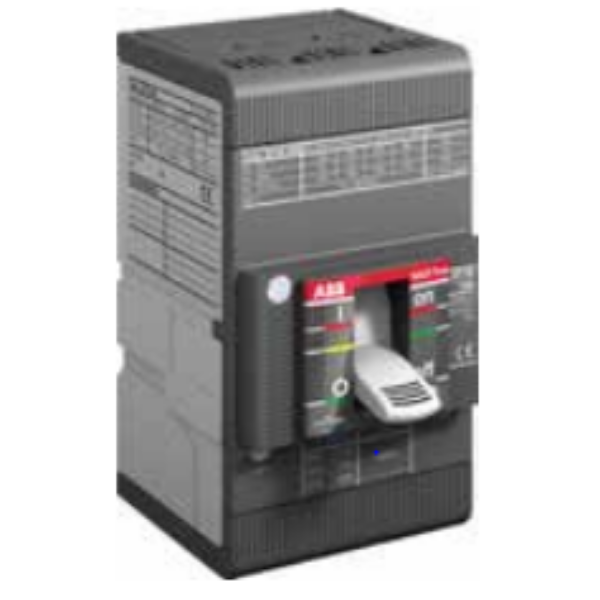

ABB 1SDA067028R1 - 8 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA067028R1 - 8 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

ABB - 8 A, 3 Pole Power Distribution Circuit Breakers have a very high-performance level while becoming progressively smaller in size, easier to install, and capable of delivering increasingly better safety assurances to the operator. 3 Pole Power DistributionCircuit breakers are suitable for the secondary distribution of alternating and direct current, and they have specialised solutions for various application requirements. Therefore, they are suitable for use in low-voltage civil and industrial installations. 8 A, 3 Pole Power Distribution Circuit breakers have a thermomagnetic release trip unit, a thermal and magnetic release combination. Because the assembly instructions are simple, trip units can be replaced quickly and easily, even in the field. This makes the Power Distribution Circuit Breakers extremely simple to use, resulting in significant savings due to rationalised stock management. Furthermore, all Circuit Breakers enable ease of use, decrease inventory and result in a highly versatile and simple-to-manage system.

PRODUCT SPECIFICATIONS:

● Brand: ABB

● Depth: 82.5 mm

● Electrical Durability: 120 cycles per hour 8000 cycle

● Frame: XT2160

● Height: 130 mm

● Model: 1SDA067028R1

● Number of Poles: 4

● Power Loss: At Rated Operating Conditions per Pole 2.57 W

● Rated Current: 8 A

● Rated Impulse Withstand Voltage: 8 KV

● Rated Insulation Voltage: 1000 V

● Rated Operational Voltage: 690 V AC and 500 V DC

● Rated Voltage: 690 V

● Weight: 1.45 Kg

● Width: 120 mm

KEY FEATURES:

● Prevent injury

● Safe to use

● Durable

Product Specifications

GENERAL

Brand:
ABB
Depth:
82.5 mm
Electrical Durability:
120 cycles per hour 8000 cycle
Frame:
XT2160
Height:
130 mm
Model:
1SDA067028R1
Number of Poles:
4
Power Loss:
At Rated Operating Conditions per Pole 2.57 W
Rated Current:
8 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
1.45 Kg
Width:
120 mm
