ABB

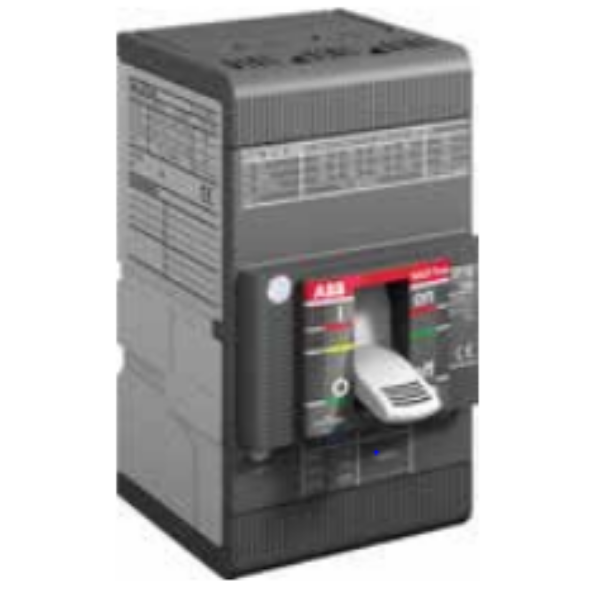

ABB 1SDA066816R1 - 63 A, 4 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA066816R1 - 63 A, 4 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The ABB - 63 A, 4 Pole Power Distribution Circuit Breakers is a compact unit suitable for homes and other commercial spaces. The 63 A, 4 Pole Power Distribution Circuit Breakers have fixed terminals that can be easily accessed. The 4 Pole Power Distribution Circuit Breakers can be installed on any low voltage power distribution line. These Power Distribution Circuit Breakers have a thermomagnetic release TMD R 63-630 A system. These Circuit Breakers have a fully enclosed, moulded case.

Product Specifications:

  • Manufactured by: ABB
  • Code: 1SDA066816R1
  • Net Width: 101.6 mm
  • Net Height: 130 mm
  • Net Depth / Length: 70 mm
  • Net Weight: 1.373 kg
  • Electrical Durability: 120 cycles per hour, 8000 cycles
  • Mechanical Durability: Nr. Operations 240 cycles per hour, Nr. Operations 25000 cycle
  • Number of Poles: 4
  • Opening Time: CB with SOR 15 ms, CB with UVR 15 ms
  • Power Loss: at Rated Operating Conditions per Pole 4.3 W
  • Rated Current: 63 A
  • Rated Frequency: 50 / 60 Hz
  • Rated Voltage: 690 V
  • Rated Impulse Withstand Voltage: 8 kV
  • Rated Instantaneous Short-Circuit Current Setting: 630 A
  • Rated Insulation Voltage: 800 V
  • Rated Operational Voltage: 690 V AC / 500 V DC

Key Features:

  • Heat-resistant case
  • Double insulation
Product Specifications

GENERAL

Brand:
ABB
Depth:
70 mm
Electrical Durability:
120 cycles per hour 8000 cycle
Frame:
XT1 160
Height:
130 mm
Model:
1SDA066816R1
Number of Poles:
4
Power Loss:
At Rated Operating Conditions per Pole 4.3 W
Rated Current:
63 A
Rated Frequency:
50/60 Hz
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
800 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
1373 Kg
Width:
101.6 mm
