ABB

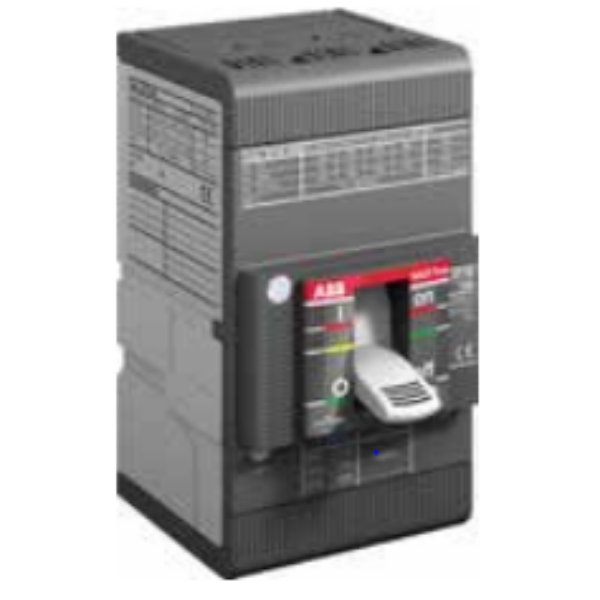

ABB 1SDA066814R1 - 40 A, 4 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA066814R1 - 40 A, 4 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The ABB - 40A 4 Pole Power Distribution Circuit Breakers is a high-quality ABB device. The 4 Pole Power Distribution Circuit Breakers are made with high-quality materials and modern procedures and techniques. Also, the ABB - 40A, 4 Pole Power Distribution Circuit Breakers are designed to meet the safety and reliability issues. Moreover, the Circuit breakers and accessories in the Distribution Circuit Breakers have been tested following the IEC 60068-2-30 Standard.

Product Specifications:

  • Manufactured By: ABB
  • Product ID: 1SDA066814R1
  • Product: Circuit Breaker
  • Electrical Durability:120 cycles per hour 8000 cycle
  • No of Poles in the Circuit Breaker- 4
  • Standard: IEC
  • Circuit Breaker Type: Power Distribution
  • Current type: AC/DC
  • Rated Current: 40 A
  • Terminal Connection Type: Fixed Circuit Breakers
  • Rated Frequency: 50/60 Hz

Key Features:

  • This circuit breaker is simple to use.
  • Easy to Install.
Product Specifications

GENERAL

Brand:
ABB
Depth:
70 mm
Electrical Durability:
120 cycles per hour 8000 cycle
Frame:
XT1 160
Height:
130 mm
Model:
1SDA066814R1
Number of Poles:
4
Power Loss:
At Rated Operating Conditions per Pole 2.6 W
Rated Current:
40 A
Rated Frequency:
50/60 Hz
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
800 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
1359 Kg
Width:
101.6 mm
