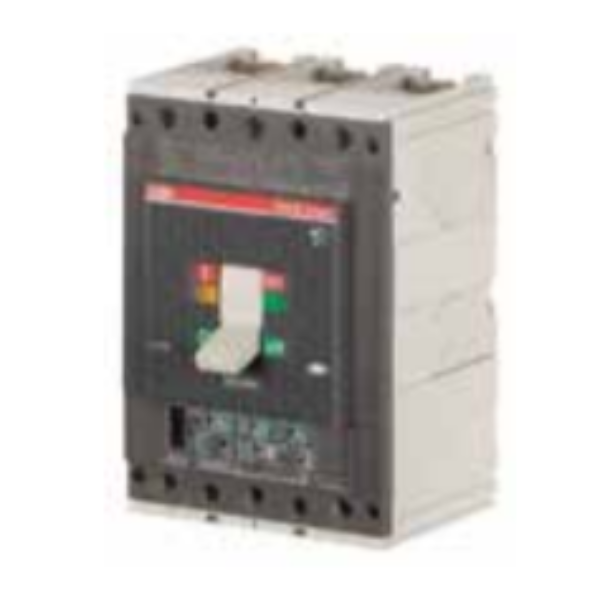

ABB 1SDA064157R1 - 400 A, 3 Pole Power Distribution Circuit Board


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA064157R1 - 400 A, 3 Pole Power Distribution Circuit Board

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The ABB - 400 A, 3 pole Power Distribution Circuit Board has a compact design and mould casing. The 400 A, 3 pole Power Distribution Circuit Board is equipped with front terminals for easy and quick access. The 3 pole Power Distribution Circuit Board has an EL type release system. The Power Distribution Circuit Board short-circuit performance is rated N. The Circuit Board conforms to International electrical safety and pollution guidelines, making it suitable for universal use. The ABB - 400 A, 3 pole Power Distribution Circuit Board is a T5 type board.

Product Specifications:

  • Manufactured by: ABB
  • Product Code: 1SDA064157R1
  • Width: 140 mm
  • Height: 205 mm
  • Depth / Length: 103.5 mm
  • Weight: 5.1 kg
  • Electrical Durability: 7000 cycles, 60 cycles per hour
  • Mechanical Durability: 20000 cycles, 120 cycles per hour
  • Number of Poles: 3
  • Power Loss: at Rated Operating Conditions per Pole 41 W
  • Rated Current: Main Circuit 400 A
  • Rated Impulse Withstand Voltage: 8 kV
  • Rated Insulation Voltage: 1000 V
  • Rated Operational Voltage: 690 V AC
  • Rated uninterrupted Current: 630 A

Key Features:

  • Suitable for low voltage application
  • Mould casing
Product Specifications

GENERAL

Brand:
ABB
Depth:
103.5 mm
Electrical Durability:
60 cycles per hour 7000 cycle
Height:
205 mm
Model:
1SDA054551R1
Number of Poles:
3
Power Loss:
At Rated Operating Conditions per Pole 10.6 W
Rated Current:
400 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC
Rated Voltage:
690 V
Weight:
5.1 Kg
Width:
140 mm
