ABB

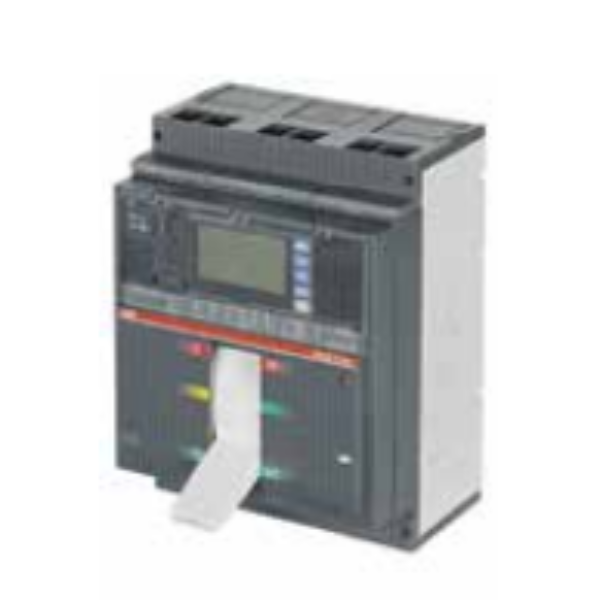

ABB 1SDA062994R1 - 1600 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA062994R1 - 1600 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

To prevent damage to the circuit or equipment, ABB - 1600A, 3 Pole Power Distribution Circuit Breakers is a protective device that detects faults and interrupts power flow. 1600A, 3 Pole Power Distribution Circuit Breakers have fixed 3 poles with the front end, lever operating mechanism and solid-state release in AC PR231/P-LS/I R 1600. The Power DistributionCircuit breakers by ABBhave thermomagnetic or electrical trip units. And once the circuit is free of current over surge, the Circuit Breakers return to normal operating conditions.

PRODUCT SPECIFICATIONS:

● Brand: ABB

● Depth: 154 mm

● Electrical Durability: 60 cycles per hour 2000 cycle

● Height:.268 mm

● Model: 1SDA062994R1

● Number of Poles: 4

● Power Loss: at Rated Operating Conditions per Pole 77 W

● Rated Current: 1600 A

● Rated Impulse Withstand Voltage: 8 KV

● Rated Insulation Voltage: 1000 V

● Rated Operational Voltage: 690 V AC

● Rated Voltage: 690 V

● Weight: 13.614 Kg

● Width: 210 mm

KEY FEATURES:

● Rapid response

● Protect an electrical circuit.

● Small and light in weight

Product Specifications

GENERAL

Brand:
ABB
Depth:
154 mm
Electrical Durability:
60 cycles per hour 2000 cycle
Height:
268 mm
Model:
1SDA062994R1
Number of Poles:
4
Power Loss:
at Rated Operating Conditions per Pole 77 W
Rated Current:
1600 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC
Rated Voltage:
690 V
Weight:
13614 Kg
Width:
210 mm
