ABB

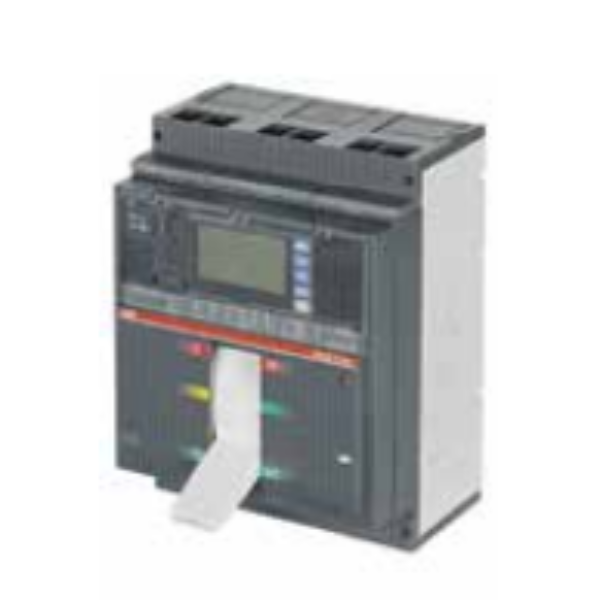

ABB 1SDA062868R1 - 1250 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA062868R1 - 1250 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The ABB - 1250 A, 3 Pole Power Distribution Circuit Breakers has three pole terminals and lever operating mechanisms with a solid-state release. Installing these 1250 A, 3 Pole Power Distribution Circuit Breakers is possible in vertical and horizontal positions. In addition, there is a new, faster, and safer racking-out system for moving parts. The company provides the device with all types of terminals (flat-orientated rear terminals). This Pole Power Distribution Circuit Breaker has no wires inside the circuit breaker, a rapid, simple, and safe connection to the external circuit, and no screws for fixing the external power supply cables.

Product Specifications:

  • Width: 210 mm
  • Height: 268mm
  • Depth: 154 mm
  • Weight: 9.8 kg
  • No. of poles: 3
  • Rated current: main circuit 1250 A
  • Electrical durability: 60 cycles per hour
  • Mechanical durability: Nr. Operations 60 cycles per hour
  • Rated frequency: 50/60 Hz
  • Current type: AC/DC
  • Model: 1SDA062868R1
  • Rated insulation voltage: 1000 V
  • Rated voltage: 690 V

Key features:

  • Durable
  • Easy to use
  • Wear-resistant
  • Heat resistant
Product Specifications

GENERAL

Brand:
ABB
Depth:
154 mm
Electrical Durability:
60 cycles per hour 2000 cycle
Height:
268 mm
Model:
1SDA062868R1
Number of Poles:
3
Power Loss:
at Rated Operating Conditions per Pole 47 W
Rated Current:
1250 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC
Weight:
9.7 Kg
Width:
210 mm
