ABB

ABB 1SDA062865R1 - 1250 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA062865R1 - 1250 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

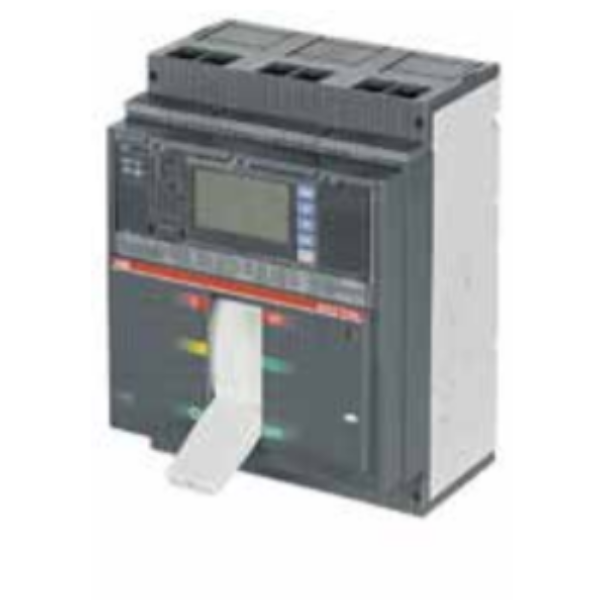

The ABB - 1250 A, 3 Pole Power Distribution Circuit Breakers are ideal for low voltage operations in homes, offices and industries. The 1250 A, 3 Pole Power Distribution Circuit Breakers have front terminals and a manual lever mechanism. The 3 Pole Power Distribution Circuit Breakers are also provided with a solid-state release system. These Power Distribution Circuit Breakers are manufactured with a moulded casing with double insulation for greater electrical safety. The Circuit Breakers are safe for indoors and come with CE mark assurance.

Product Specifications:

  • Manufactured by: ABB
  • Product Code: 1SDA062865R1
  • Width: 210 mm
  • Height: 268 mm
  • Depth / Length: 154 mm
  • Product Net Weight: 9.7 kg
  • Electrical Durability: 2000 cycles, 60 cycles per hour
  • Mechanical Durability: 10000 cycles, 60 cycles per hour
  • Number of Poles: 3
  • Power Loss: at Rated Operating Conditions per Pole 47 W
  • Rated Current: Main Circuit 1250 A
  • Rated Impulse Withstand Voltage: 8 kV
  • Rated Insulation Voltage: 1000 V
  • Rated Operational Voltage: 690 V AC

Key Features:

  • Suitable for T7
  • Front terminals and mechanical lever available
Product Specifications

GENERAL

Brand:
ABB
Depth:
154 mm
Electrical Durability:
60 cycles per hour 2000 cycle
Height:
268 mm
Model:
1SDA062865R1
Number of Poles:
3
Power Loss:
At Rated Operating Conditions per Pole 47 W
Rated Current:
1250 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC
Rated Voltage:
690 V
Weight:
9.7 Kg
Width:
210 mm
