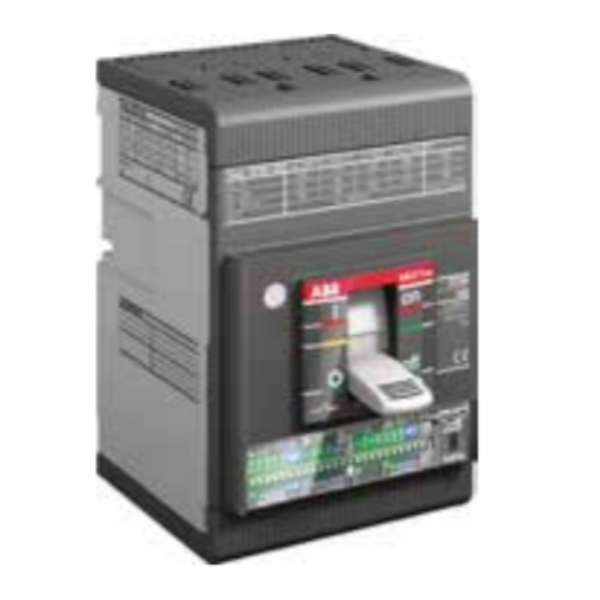

ABB 1SDA060548R1 - 1000 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA060548R1 - 1000 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

ABB - 1000 A, 3 Pole Power Distribution Circuit Breakers are 3 Pole Power Distribution Circuit Breakers durable and long-lasting. The 1000 A, 3 Pole Power Distribution Circuit Breakers have a voltage of 1000V AC. The circuit breakers have electrical durability of 60 cycles per hour, 4000 cycles. It has standards recognized by IEC, and it comes with a modern modular casing. It has a current rating of 1000 Ampere and a breaking capacity of 18 kA at 415V AC. It also has terminals at the front end.

Product Specifications:

  • Brand: ABB
  • Product ID: 1SDA060548R1
  • Country of origin: Italy
  • Voltage: 1000V
  • Current Rating: 1000A
  • Rated Impulse Withstand Voltage: 8kV
  • Short Circuit Performance Level: 50kA
  • Width: 305mm
  • Height: 285mm
  • Length; 370mm
  • Weight; 11Kg
  • Product Range: Tmax T
  • Standards: IEC
  • Electrical Durability: 60 Cycles per hour, 4000 Cycles
  • Rated Uninterrupted Current: 1000A
  • Mechanical Durability: 120 cycles per hour, 20000 cycles

Key Features:

  • Moulded Casing
  • Front End Terminals
Product Specifications

GENERAL

Brand:
ABB
Depth:
103.5 mm
Electrical Durability:
60 cycles per hour 4000 cycle
Height:
268 mm
Model:
1SDA060548R1
Number of Poles:
3
Power Loss:
At Rated Operating Conditions per Pole 50 W
Rated Current:
1000 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
9.5 Kg
Width:
210 mm
