ABB

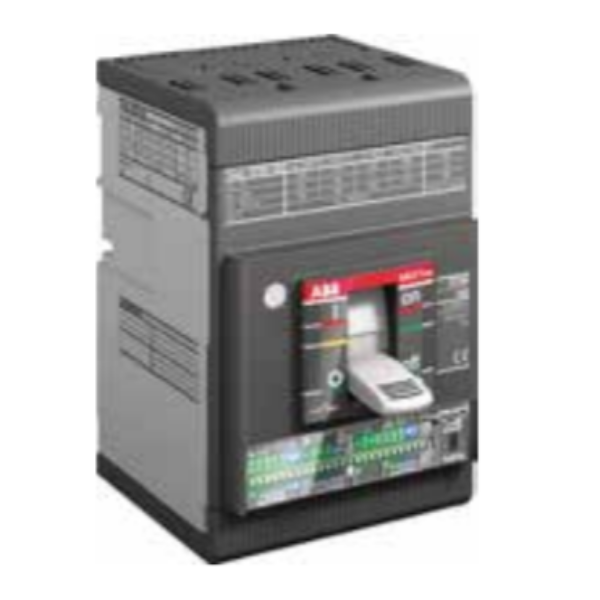

ABB 1SDA060279R1 - 800 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA060279R1 - 800 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

ABB - 800 A, 3 Pole Power Distribution Circuit Breakers are designed with low voltage and 60 cycles per hour 5000 cycle electrical durability. 800 A, 3 Pole Power Distribution Circuit Breakers are the finest quality and durable performance. 3 Pole Power Distribution Circuit Breakers reduce the unwanted overloading and sense the faults, preventing circuit damage. Circuit Breakers protect the devices, and their main function is to protect equipment from short circuits.

Product Specifications:

  • Brand: ABB
  • Depth: 103.5 mm
  • Electrical Durability: 60 cycles per hour 5000 cycle
  • Height: 268 mm
  • Model: 1SDA060279R1
  • Number of Poles: 3
  • Power Loss: At Rated Operating Conditions per Pole 32 W
  • Rated Current: 800 A
  • Rated Impulse Withstand Voltage: 8 KV
  • Rated Insulation Voltage: 1000 V
  • Rated Operational Voltage: 690 V AC and 500 V DC
  • Rated Voltage: 690 V
  • Weight: 9.5 Kg
  • Width: 210 mm

Key Features:

  • Safeguard Equipment
  • Protection from short circuits
  • Analyses the faults instantly
  • Highly Durable performance
Product Specifications

GENERAL

Brand:
ABB
Depth:
103.5 mm
Electrical Durability:
60 cycles per hour 5000 cycle
Height:
268 mm
Model:
1SDA060279R1
Number of Poles:
3
Power Loss:
At Rated Operating Conditions per Pole 32 W
Rated Current:
800 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
9.5 Kg
Width:
210 mm
