ABB

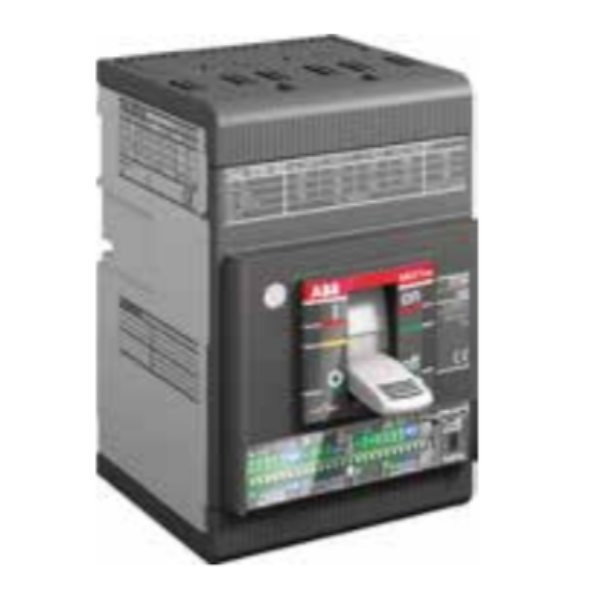

ABB 1SDA054405R1 - 630 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA054405R1 - 630 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

ABB 1SDA054405R1 - 630 A, 3 Pole Power Distribution Circuit Breakers is a 3 Pole Power Distribution Circuit Breaker equipped with 3 poles and has a voltage of 415V AC. The 630 A, 3 Pole Power Distribution Circuit Breaker comes with a modern molded casing and has electrical durability of 60 cycles per hour, 5000 cycles. The Power Distribution Circuit Breaker has a breaking capacity of 50kA at 415V AC. The Circuit Breaker has a current rating of 630 Ampere. The ABB 1SDA054405R1 - 630 A, 3 Pole Power Distribution Circuit Breaker also has front terminals.

Product Specifications:

  • Brand: ABB
  • Model: 1SDA054405R1
  • Country of origin: Italy
  • Current rating; 630A
  • Voltage: 415V AC
  • Electrical Durability: 60 cycles per hour. 5000 cycles
  • Breaking Capacity: 50kA at 415V AC
  • Rated operational Voltage: 690 Volt
  • Standards: IEC
  • Weight: 5.1kg
  • product net width: 140 mm
  • product net height: 205 mm
  • product net depth: 103.5 mm
  • Rated Insulation Voltage: 1000V
  • Size: T5
  • Rated Uninterrupted Current: 630A
  • Mechanical Durability: 120 cycles per hour, 20000 cycles

Key Features:

  • Molded casing
  • Front Terminals
  • Heat Resistant
Product Specifications

GENERAL

Brand:
ABB
Depth:
103.5 mm
Electrical Durability:
60 cycles per hour 5000 cycle
Height:
205 mm
Model:
1SDA054405R1
Number of Poles:
3
Power Loss:
At Rated Operating Conditions per Pole 41 W
Rated Current:
630 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
5.1 Kg
Width:
140 mm
