ABB

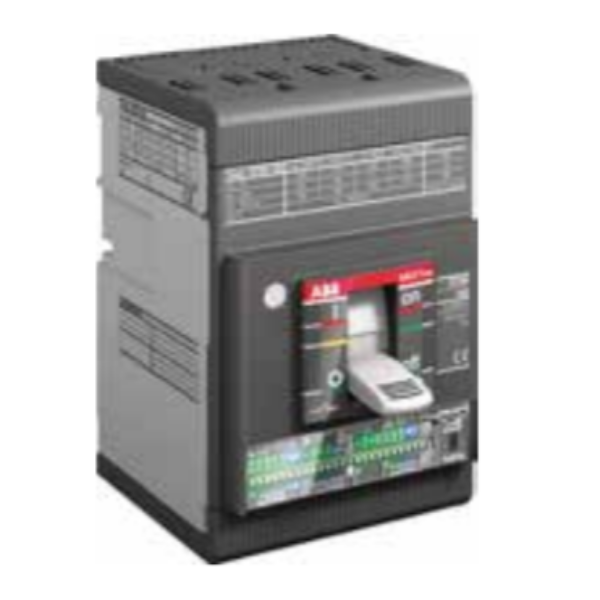

ABB 1SDA054397R1 - 630 A, 3 Pole Power Distribution Circuit Breakers


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
ABB

ABB 1SDA054397R1 - 630 A, 3 Pole Power Distribution Circuit Breakers

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Acircuit breaker like the ABB 630 A, 3 Pole Power Distribution circuit breaker is a high-quality safety product. It permits the removal of circuit conductors for the circuit with a fault. A single switching handle controls all three poles. You can use the 3 PolePower Distribution Circuit Breakers in place of a fuse. Circuit breakers also bear the name of safety or limit switches. Power Distribution Circuit Breakers provide trustworthy overload protection. On overloading of the circuit, the toggle switch slides to the off position, and you cannot restore it until the removal of the current surge. In this way, this circuit breaker prevents electric shock. Electric leakage, overload, and short circuit protection are all included. They are perfect for systems that require secure, well-organised, and semi-permanent wire connections that any user can quickly swap out in the field for inspection or repair.

PRODUCT SPECIFICATIONS:

● Brand: ABB

● Depth: 103.5 mm

● Electrical Durability: 60 cycles per hour 5000 cycle

● Height: 205 mm

● Model: 1SDA054397R1

● Number of Poles: 3

● Power Loss: At Rated Operating Conditions per Pole 41 W

● Rated Current: 630 A

● Rated Impulse Withstand Voltage: 8 KV

● Rated Insulation Voltage: 1000v

● Rated Operational Voltage: 690 V AC and 500 V DC

● Rated Voltage: 690 V

● Weight: 5.1 Kg

● Width: 140 mm

KEY FEATURES:

● Durable

● Easy to use

● Quick response

Product Specifications

GENERAL

Brand:
ABB
Depth:
103.5 mm
Electrical Durability:
60 cycles per hour 5000 cycle
Height:
205 mm
Model:
1SDA054397R1
Number of Poles:
3
Power Loss:
At Rated Operating Conditions per Pole 41 W
Rated Current:
630 A
Rated Impulse Withstand Voltage:
8 KV
Rated Insulation Voltage:
1000 V
Rated Operational Voltage:
690 V AC and 500 V DC
Rated Voltage:
690 V
Weight:
5.1 Kg
Width:
140 mm
